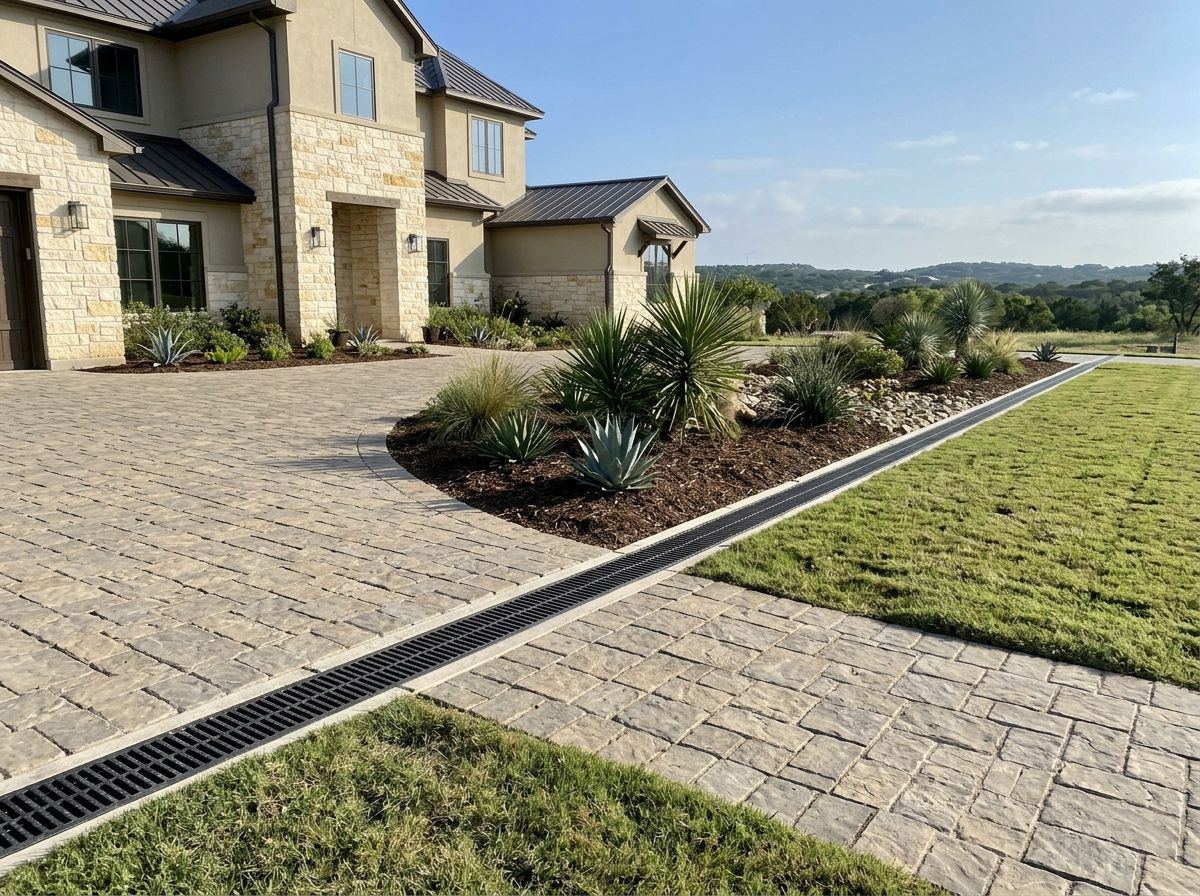

French Drains French Drain w/ Channel Tie-In

Introduction to French Drain w/ Channel Tie-In

A French Drain w/ Channel Tie-In connects a subsurface French drain system to a surface channel drain. This layout is useful when a property has both wet soil and hardscape runoff, such as a soggy side yard beside a patio, driveway, or walkway.

The French drain portion collects water from saturated soil, while the channel drain collects surface water moving across pavement or compacted hardscape. Combining the two creates a more complete drainage route for mixed water problems.

The system must be designed so surface water does not overwhelm the subsurface drain and so all collected water has a safe outlet.

How It Works

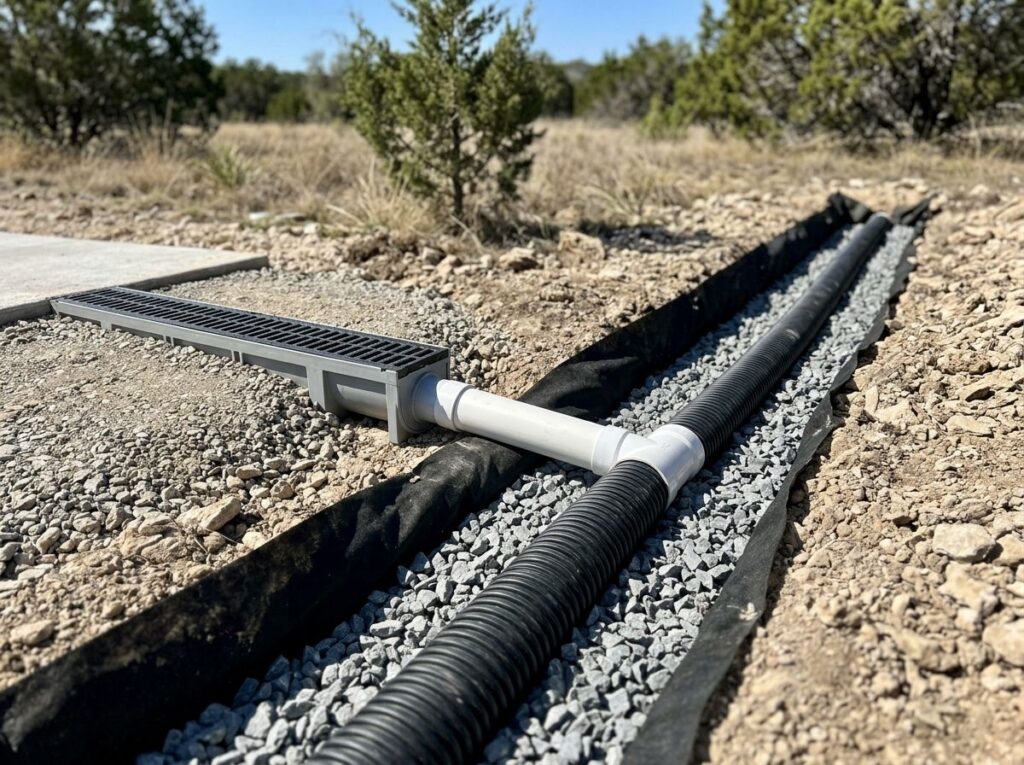

The French drain uses gravel, filter fabric, and perforated pipe to collect water from the soil. The channel drain uses a linear grate to capture sheet flow from a hard surface.

Both components tie into a discharge line that moves water to daylight, a pop-up emitter, or another appropriate outlet. Proper elevations, pipe transitions, and cleanout access help the system function and remain serviceable.

Maintenance

Maintenance includes two different tasks: keeping the channel drain grate clear and checking the French drain outlet. Leaves, soil, mulch, and grit can block the channel grate, while sediment can accumulate in low points of the pipe system over time.

Inspect the channel after major storms and remove debris from the grate. Keep cleanouts and outlets accessible so the system can be flushed if flow slows down.

Quick Facts

• Product Type: Combined French drain and channel drain system
• Best For: Areas with both saturated soil and hardscape runoff
• Main Components: Perforated French drain pipe, gravel, fabric, channel drain, grate, fittings, and outlet line
• Water Collected: Subsurface soil water plus hardscape surface runoff
• Drainage Method: Dual collection connected to a common discharge route
• Maintenance Level: Moderate; grates, outlets, and cleanouts should be checked
• Limitations: Requires careful design to balance surface and subsurface flow
• Special Traits: Useful for patios, driveways, walks, and adjacent wet landscape areas

Suggestions for San Antonio Homeowners

• Mixed Drainage Problems: Choose this system when water is coming from more than one source, such as pavement runoff and wet soil beside the same area.
• Grate Placement: Set the channel drain at the hardscape edge or low line where water naturally crosses.
• French Drain Placement: Place the French drain where water is saturating the soil, not simply where water is visibly flowing over concrete.
• San Antonio Soil: Slow-draining clay soils can make subsurface water linger, while intense storms can create fast hardscape runoff. The two collection methods help address both conditions.
• Maintenance Access: Keep grates, cleanouts, and outlets reachable. A hidden drain that cannot be cleaned is harder to keep working long term.

A French Drain w/ Channel Tie-In is a smart choice for San Antonio properties with both soggy soil and hardscape runoff. By collecting water from below ground and across paved surfaces, it provides a coordinated drainage path for more complex yard drainage problems.
